Q540/730 quad seal bag maker is perfect for packaging snacks, candy, coffee, milk, fresh and frozen fruits, vegetables and more.
Features
● User friendly PLC controller & Touch screen interface
● Unique back-seal design are extremely flexible to run quad seal, pillow, gusset bag.
● Independent temperature zones
● Servo-driven film transport and cross sealing jaw
● Vacuum pump assists film transport
● Guarding style allows greater access & easy maintenance
● Fully enclosed stainless steel & aluminum construction
● Robust long-life construction
Technical Specifications
Model | FT-Q540 | FT-Q730 | |
Bag style | Quad Seal Bag, pillow and gusset bag | ||
Bag width | 80 to 200mm (3.1’’ to 7.9’’) | 100 to 240mm (4’’ to 9.4'') | |
Bag Side depth | 50 to 100mm (2’’ to 3.9'') | 50 to 120mm (2’’ to 4.7'') | |
Edge Seal width | 5 to 10mm (0.2’’ to 0.4'') | ||
Film width | ≤540mm (21.3'') | ≤730mm (28.7'') | |
Voltage | AC220V/50Hz, 1phase or Per customer specification | ||
Power Consumption | 3KW | 4KW | |
Compressed Air Requirement | 0.6 MPa, 0.36 M3/min ( 87 Psi, 12.7cfm) |
※Above parameters are able to be customized properly as requests.

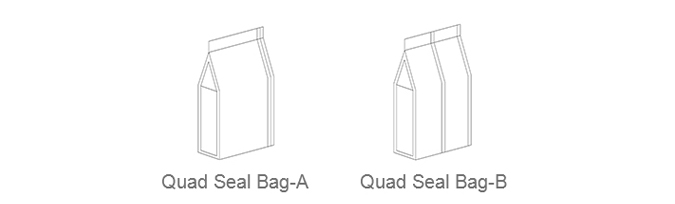

Bag Styles
