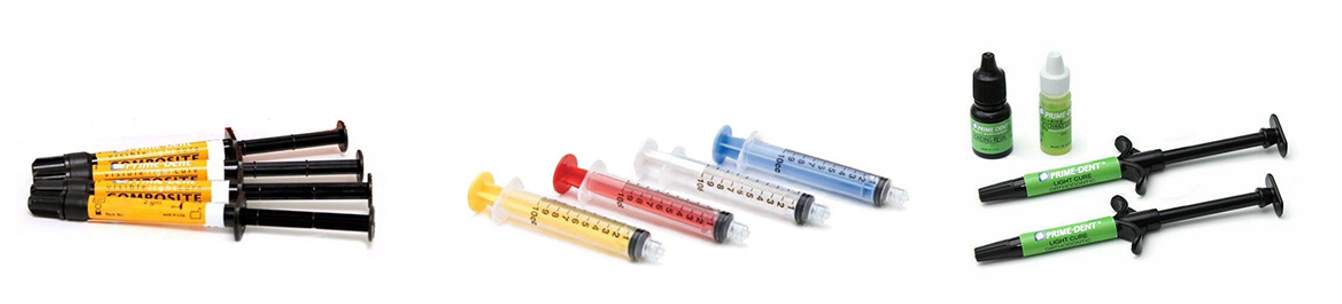

This FSVP series piston filling machine are widely used in medicine, beauty, chemical experiments, agriculture, food industry, for filling flowable dental composite, hyaluronic acid,, gel, cream, resin, pastry etc. products
Feature
●Filling volume range is from 0.5ml to 50ml by different model
●Can be operated by foot pedal or by automatic timer.
●Bottom close positive shutoff nozzles ensure drip free operations.
●Product suction and dispensing speed adjustment.
●No-Tools for set-up and adjustment.
●Sanitary tri-clamp connections.
●Quick release nozzle and feed pipe
●Small footprint for simple bench mounting
●Optional supporting moveable bracket
●Cylinder, valve and Filling Nozzle made up of 316L stainless steel and polyethylene with Teflon, it accord with
●Pneumatic operation suitable for harsh environments or wash down facilities.
●Food and pharmaceutical 316# grade stainless steel contact parts
●316# stainless steel product hopper
●Conform to GMP
●Suitable for syringe with luer lock
●Agitator, lever sensor and Heating-up hopper is available by option
●Fully pneumatic driven is optional
Technical Data
Model
FSVP-0005
FSVP-0020
FSVP-0050
Power Supply
110V/220V, 50/60Hz
Filling Volume
0.5ml to 5ml
1ml to 20ml
5ml to 50ml
Accuracy
0.05ml-0.1ml
0.1ml to 0.2ml
0.2ml to 0.5ml
Capacity
20-90times/min
Air Source
0.4 to 0.6MPa
Air Consumption
0.1Liter/min
Control
Foot pedal switch & Auto-timer operation
Optional
Heating-up hopper, Easy dismantle and clean three-way valve, Mixer, Supporting Stand with castor, Luer lock nozzle
