The FCM series automatic cartoning machine is an advanced automation equipment which integrated with automatic opening of the carton, leaflet folding, boxing of items, date code printing (optional) and carton sealing (physical inserted or glue spray is optional). This machine can be used alone or equip with other production machineries to combine into a complete production line. Its design is flexible suited to pack a variety of products, foodstuff, pharmacy, cosmetics, daily commodities, toys, electronics and so on.

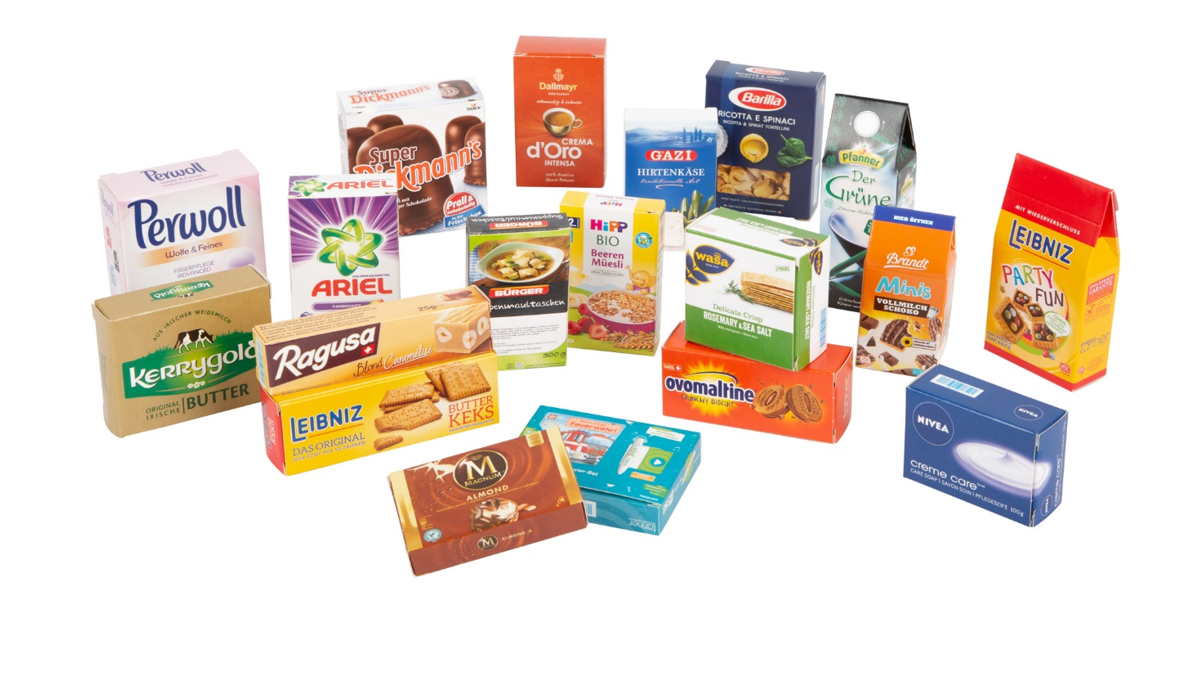

Typical Application: Cookies, biscuits, waffle, chocolate, candies, cakes, popsicle, ice cream, tea, coffee, snacks, soap, medicines, makeup, napkin, lamp, stationery etc.





Feature

●User friendly OMRON PLC and touch screen, easy for operation

●With OMRON convertor for speed adjusting

●Automatic box opening (suction), folding, infeeding, printing, box sealing, waste detection

●Automatically reject packaged products that lack packaging to ensure the quality of packaged products.

●With function of fault and alarm message display on touch screen, easy to maintain

●Various devices such as automatic feeder and conveying mechanism can be designed according to customer requirements.

●It’s flexible to equip with soap machine, flow wrapper, blister packer, shrink wrapper, strapping machine, inkjet printer, label applicator and others combine into a complete production line.



Technical Data

Model		FCM-130	FCM-180	FCM-200
Power Voltage		380V/50Hz, 3ph or customized requirements
Carton Size	L	70 to 250mm (2.8’’ to 9.8’’)	70 to 280mm (2.8’’ to 11’’)	70 to 350mm (2.8’’ to 13.7’’)
	W	60 to 120mm (2.3’’ to 4.7’’)	80 to 180mm (3.1’’ to 7.1’’)	100 to 200mm (3.9’’ to 7.9’’)
	H	20 to 90mm (0.8’’ to 3.5’’)	20 to 90mm (0.8’’ to 3.5’’)	20 to 90mm (0.8’’ to 3.5’’)
Speed		30-60pcs/min	30-60pcs/min	30-50pcs/min
Carton   Material		250g to 450g/m2 (Depending on the its’ dimensions to confirm)
