The single head pre-made pouch packaging machine emphasizes the package of stand-up bag, zipper bag, and various pre-made pouches. Cooperated with different dosing systems (combination weigher/ linear weigher/ auger screw/ piston filler) and automatic lifting conveyors, it is widely applied to granules, liquid, and powder in food and non-food industries.



Features

●User friendly PLC and HMI touch screen controller

●304# stainless steel frame

●Speed is up to 15bpm

●Servo motor drive

●Load bags while running

●Self-diagnosis & Auto alarm

●No bag no dump

●Various bag type, zip lock, doy-pack, flat bag, gusseted bag etc.

●Easily operating & adjusting

●Small footprint

●Optional nitrogen flushing device, inkjet printer, vibration tapper, dust collector etc.

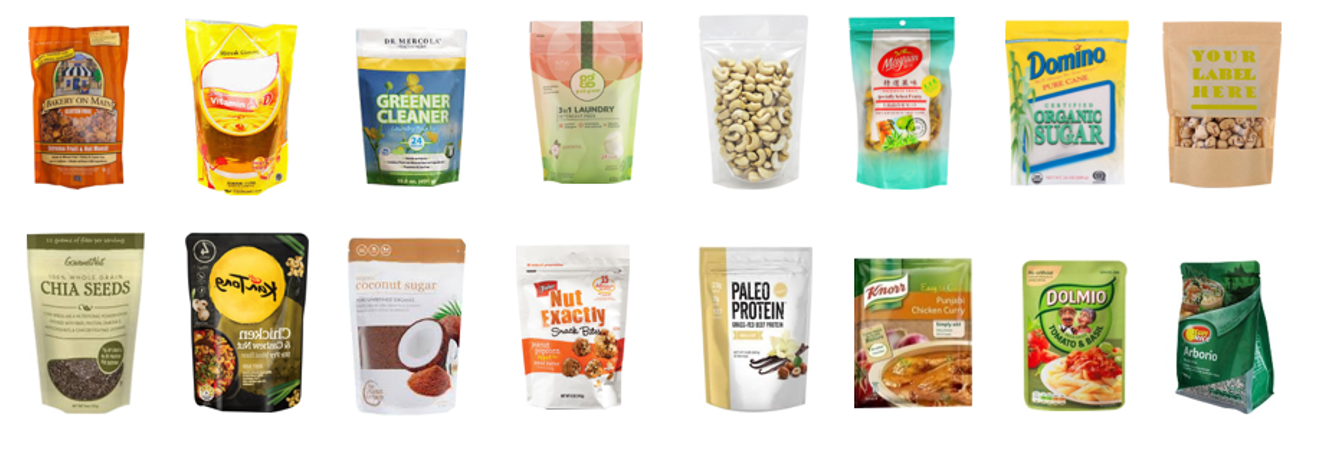

Bag Samples

Technical Data

Model	FP-160	FP-280
Bag Width	80mm- 160mm	120mm- 280mm
Bag   Length	130mm-400mm	120mm-400mm
Bag Type	Gusset bags, Quad Seal   Gusseted bag, zipper bags, etc.	Heat sealable premade   bags, like doypack pouch, flat bags, stand-up bags, Quad Seal bags, zipper   bags, etc.
Power	220V, 50/60HZ, 1 Phase,   AC 20 Amps	220V, 50/60HZ, 1 Phase,   AC 20 Amps
Air	0.5-0.65Mpa@470L/min	7.0 CFM@80 PSI
