Pre-made pouch fill and seal machine, composed of 8 working stations of efficiency and stability, emphasizes the package of stand-up bag, zipper bag, spout bag, and various pre-made pouches. Cooperated with piston filler, lobe pump, gear pump etc. dosing system. It’s used for all types of liquid products of high or low viscosity vacuum packaging, such as juice, water, milk, soup, glucose syrup, soy sauce, butter, hot chili sauce, jams, purees, mayonnaise, custard cream, salad dressing, ice cream, tomato ketchup, meat pastes, pastry fillings, emulsifiers, resins, paint, wax, gel, lubrication oil, grease, paraffin, ice glue, detergent, hand soap, sanitizer, ointments, antifreeze, additives and so on.

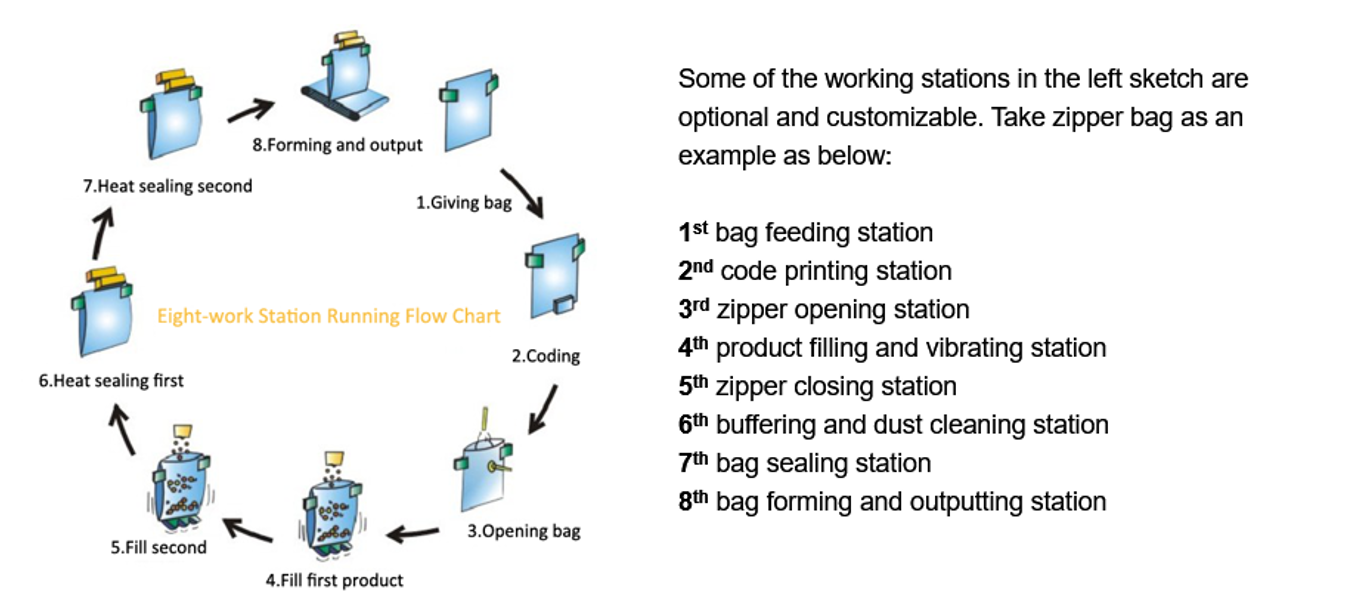

Working Processing
Features
●SIEMENS PLC and touch screen, easy for operation
●Schneider frequency converter and Festo cylinder
●Full 304# stainless steel construction, able to be cleaned by rinsing
●Equipped with dosing system to achieve precise product measuring and filling
●Applicable to flexible pouch formats and product types
●Self-diagnosis: no filling or sealing when it is detected that the bag is not open or not open completely or when there’s lack of bags.
●Auto-alarming or stop if there’s something wrong with the air pressure or heating elements.
Technical Data
Model | FMR-200 | FMR-300 |
Working Stations Number | Eight | |
Pre-made Pouch Types | Heat sealable premade side seal bags, like gusseted bag, flat bottom bags, zipper bags, stand-up bags, spout bags, etc. | |
Pre-made Pouch Size | Width: 100 to 200mm (3.9” to 7.9”) | Width: 180 to 300mm (7.1” to 11.8”) or 160 -280mm (6.3''-11'') |
Length: 100 to 350mm (3.9” to 13.8”) | Length: 180 to 400mm (7.1” to 15.7”) | |
Capacity | 20 to 50bpm (depending on product and pouches) | |
Filling Range | 10 to 2500g (depending on the product) |
