FSG Series HFS machine is designed for pre-made pouch filling and sealing packaging application. Strong hermetic seals, complete flexibility and rugged, it’s suited to lines running a variety of products, granules, powder, liquid, pastes etc. foods and non-foods industrials.
Flexible Pouches Types Application: 3 Side Seal, 4 Side Seal, Doy-pack, Zipper Bag, Corner & Top Spout Pouch, Hanging Hole Pouch and so on.

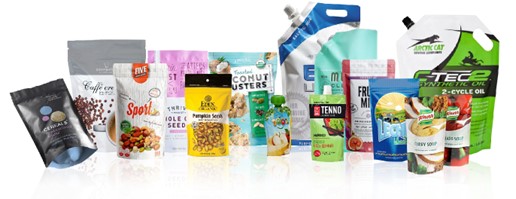

Bag Samples

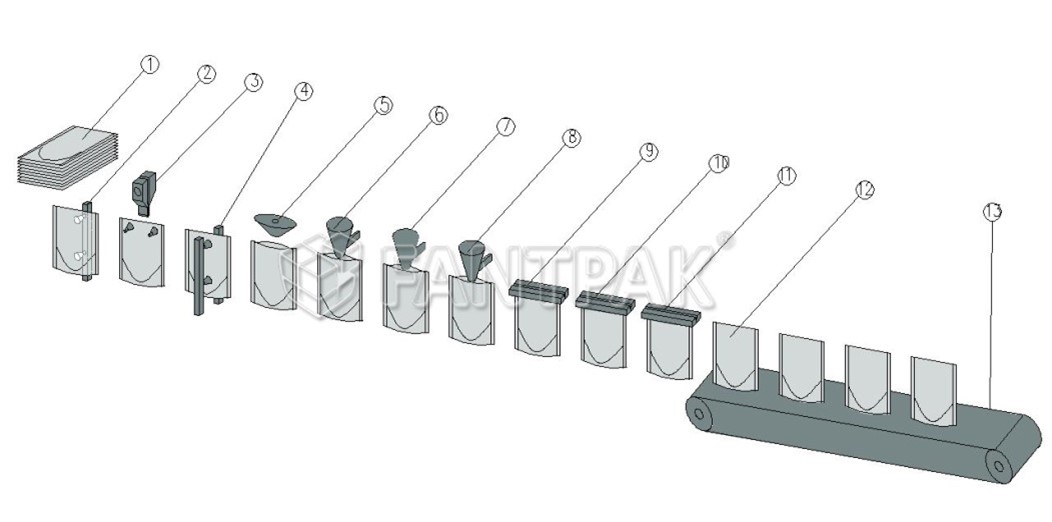

Working Stations:
1, Pouch magazine | 2, Pouch Pick-up | 3, Zipper Open (option) | 4, Pouch Open | 5, Gas-flushing |
6, First Filling | 7, Second Filling | 8, Third Filling (Option) | 9, Top seal-I | 10, Top seal-II |
11, Seal Cooling | 12, Finished products | 13, Pouch output |
Features
●User friendly PLC and touch screen, easy for operation
●Stable pouch advance with less deviation; big torque moment of pouch advance, suitable for big volume
●Computerized specification change, easy operate
●Independent zipper unwind device, even zipper seal
●No pouch or opening failed pouch detecting sensor
●Independent zipper unwind device, even zipper seal
●Auto tuning temperature controller
●Photocell for film tracking control
●10-Digital Code Embosser Printer
●Duplex models available for higher outputs
●Easy peel notch, inkjet printer, spoon filling device for option
Technical Data
Model | FSG-180 | FSG-210 | FSG-240 | FSG-280 | FSG-320 | FSG-360D | |
Pouch Types | Pre-made Doypack, Shaped, Hanging hole, Zipper (option), Spout (option) | ||||||
Pouch Size (mm) | (Min.) | 60 x 80 | 90 x 110 | 100 x 120 | 90 x 120 | 140 x 180 | 90 x 110 |
(Max.) | 180 x 260 | 210 x 310 | 240 x 320 | 280 x 400 | 320 x 410 | 180 x 260 | |
Volume (Max.) | 600ml | 1200ml | 2000ml | 3000ml | 4000ml | 1000ml | |
Speed (bpm) | 30 to 60 | 30 to 60 | 30 to 60 | 30 to 60 | 5 to 15 | 60 to 120 |
