FS Series HFFS machine is designed for forming, filling, and sealing the flat pouch, 3-Side Seal, 4-Side Seal, irregular shaped sachet etc. Strong hermetic seals, complete flexibility and rugged, it’s suited to lines running a variety of products, granules, powder, liquid, pastes etc. foods and non-foods industrials.

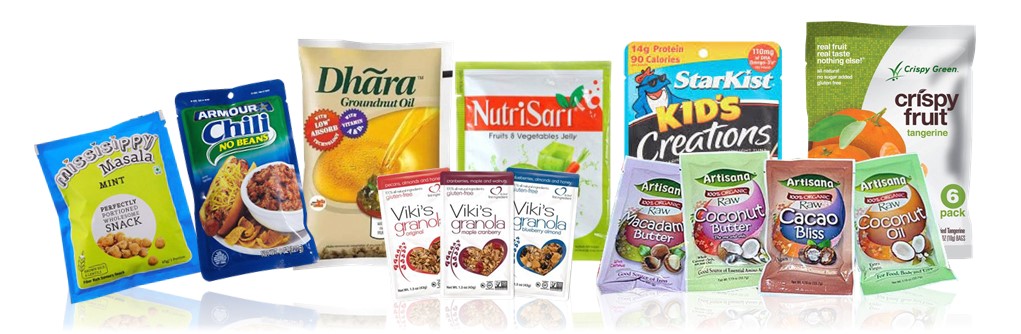

Bag Samples:

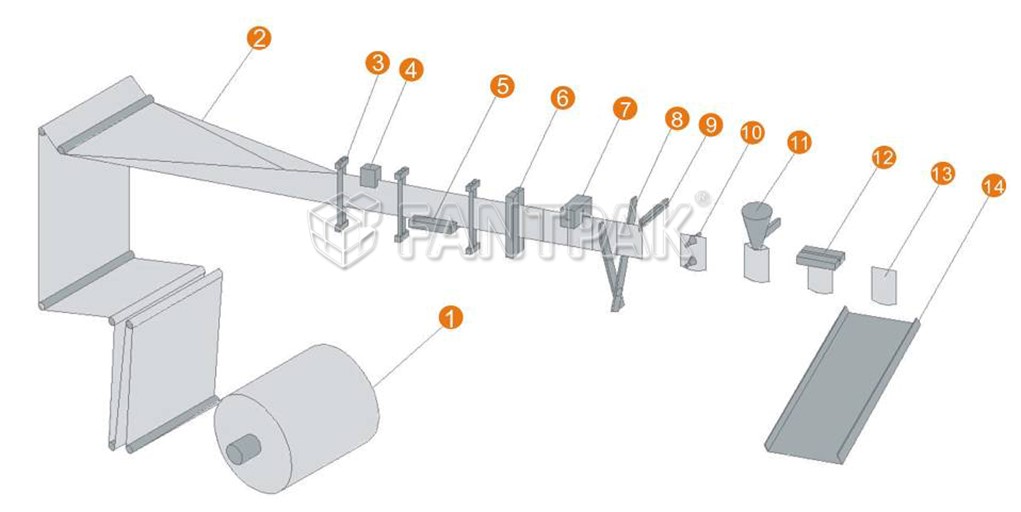

Working Stations:
1, Film unwind | 2, Pouch forming | 3, Film guider | 4, Photocell | 5, Bottom seal |
6, Vertical seal-I | 7, Tear notch (option) | 8, Cutting | 9, Pouch pulling | 10, Pouch open |
11, Filling | 12, Top seal | 13, Finished product | 14, Pouch output |
Features
●User friendly PLC and touch screen, easy for operation
●Stable pouch advance with less deviation
●Computerized specification change, easy operate
●Auto film reel alignment device
●Pouch puller by Servo driven
●Photocell for film tracking control
●Auto tuning temperature controller
●10-Digital Code Embosser Printer
●Duplex models available for higher outputs
Technical Data
Model | FS-110 | FS-130 | FS-180 | FS-180D | FS-240 | FS-240D | |
Pouch Types | 3 Side Seal, 4 Side Seal Flat Pouches | ||||||
Pouch Size (mm) | (Min.) | 50 x 50 | 60 x 80 | 60 x 80 | 50 x 80 | 100 x 120 | 65 x 80 |
(Max.) | 110 x 120 | 140 x 180 | 180 x 225 | 90 x 180 | 180 x 225 | 120 x 225 | |
Volume (Max.) | 60ml | 160ml | 400ml | 100ml | 1000ml | 180ml | |
Speed (bpm) | 40 to 80 | 40 to 80 | 40 to 80 | 120 to 180 | 30 to 70 | 100 to 160 |
