FMS Series HFFS machine is designed for forming, filling and sealing flat bag from low cost film reel, with optional zipper, hanging perforation, spout and irregular shaped pouches, also available with duplex output model to achieve high capacity request. Strong hermetic seals, complete flexibility and rugged, it’s suited to lines running a variety of products, granules, powder, liquid, pastes etc. foods and non-foods industrials.

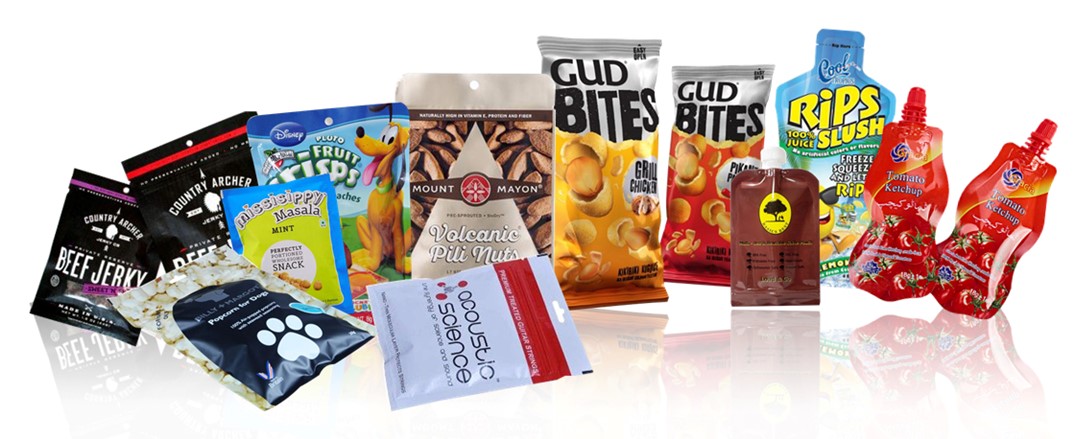

Bag Samples

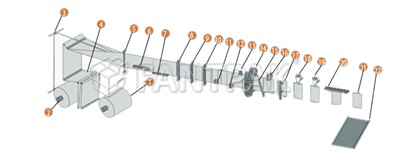

Working Stations:
1, Film unwind | 2, Zipper unwind (option) | 3, Zipper guider | 4, Pouch forming | 5, Film guider |
6, Horizontal zipper seal | 7, Bottom seal | 8, Vertical zipper seal | 9, Vertical seal-I | 10, Vertical seal-II |
11, Hanging Hole Punching (option) | 12, Tear notch (option) | 13, Photocell | 14, Servo motor pulling | 15, Cutting |
16, Pouch catching | 17, Pouch open | 18, Filling-I | 19, Filling-II | 20, Top seal-I |
21, Finished pouch | 22, Pouch output |
Features
●User friendly PLC and touch screen, easy for operation
●Stable pouch advance with less deviation; big torque moment of pouch advance, suitable for big volume
●Computerized specification change, easy operate
●Independent zipper unwind device, even zipper seal
●Auto film reel alignment device
●Three set of horizontal sealing unit with two sets of horizontal sealing unit
●Pouch puller by Servo driven
●Photocell for film tracking control
●Auto tuning temperature controller
●10-Digital Code Embosser Printer
●Duplex models available for higher outputs
Technical Data
Model | FMS-180 | FMS-180D | FMS-240 | FMS-240D |
Pouch Types | Flat bag, or with optional Hanging hole, Zipper, Spout | |||
Pouch Size (mm) | 60 x 80 (Min.) | 50 x 80 (Min.) | 100 x 120 (Min.) | 65 x 80 (Min.) |
180 x 225 (Max.) | 90 x 180 (Max.) | 240 x 320 (Max.) | 120 x 225 (Max.) | |
Volume (Max.) | 400ml | 100ml | 1000ml | 180ml |
Speed (bpm) | 40 to 80 | 100 to 160 | 30 to 70 | 100 to 160 |
