FDS Series HFFS machine is designed for forming, filling and sealing pouches from low cost film reel, with optional zipper, doy-pack, hanging perforation, spout and irregular shaped pouches, also available with duplex output model to achieve high capacity request. Strong hermetic seals, complete flexibility and rugged, it’s suited to lines running a variety of products, granules, powder, liquid, pastes etc. foods and non-foods industrials.

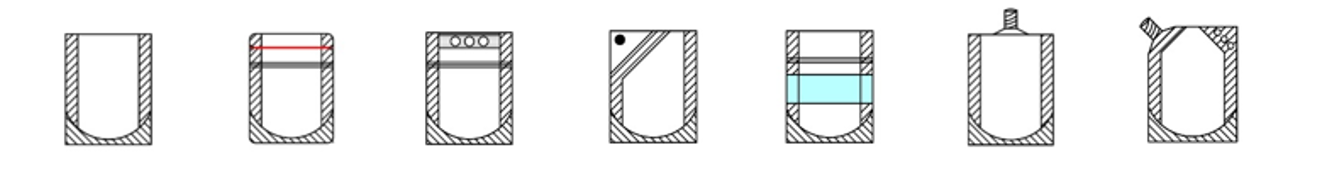

Pouch Type

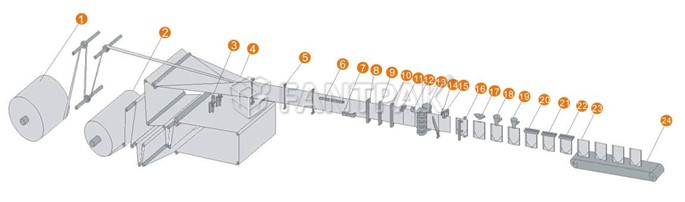

Working Stations
1, Zipper unwind (option) | 2, Film unwind | 3, Bottom hole punch (option) | 4, Pouch forming | 5, Film guider |
6, Horizontal zipper seal | 7, Bottom seal | 8, Vertical zipper seal | 9, Vertical seal-I | 10, Vertical seal-II |
11, Tear notch (option) | 12, photocell | 13, Servo guider | 14, Cutting | 15, Pouch clamp |
16, Pouch open | 17, Gas-flushing | 18, Filling-I | 19, Filling-II | 20, Top seal-I |
21, Top seal-II | 22, Top seal-III | 23, Finished pouch | 24, Pouch output |
Features
●User friendly PLC and touch screen, easy for operation
●Stable pouch advance with less deviation; big torque moment of pouch advance, suitable for big volume
●Computerized specification change, easy operate
●Independent zipper unwind device, even zipper seal
●Auto film reel alignment device
●Three set of horizontal sealing unit with two sets of horizontal sealing unit
●Pouch puller by Servo driven
●Photocell for film tracking control
●Auto tuning temperature controller
●10-Digital Code Embosser Printer
●Duplex models available for higher outputs
Technical Data
Model | FDS-180 | FDS-240 | FDS-280D | FDS-360D |
Pouch Types | Doypack, Shaped, Hanging hole, Zipper (option), Spout (option) | |||
Pouch Size (mm) | 110 x 180 (Min.) | 110 x 180 (Min.) | 110 x 120 (Min.) | 110 x 120 (Min.) |
180 x 260 (Max.) | 240 x 320 (Max.) | 140 x 250 (Max.) | 180 x 270 (Max.) | |
Volume (Max.) | 1000ml | 1500ml | 600ml | 1000ml |
Speed (bpm) | 40 to 60 | 30 to 60 | 80 to 120 | 70-100 |
