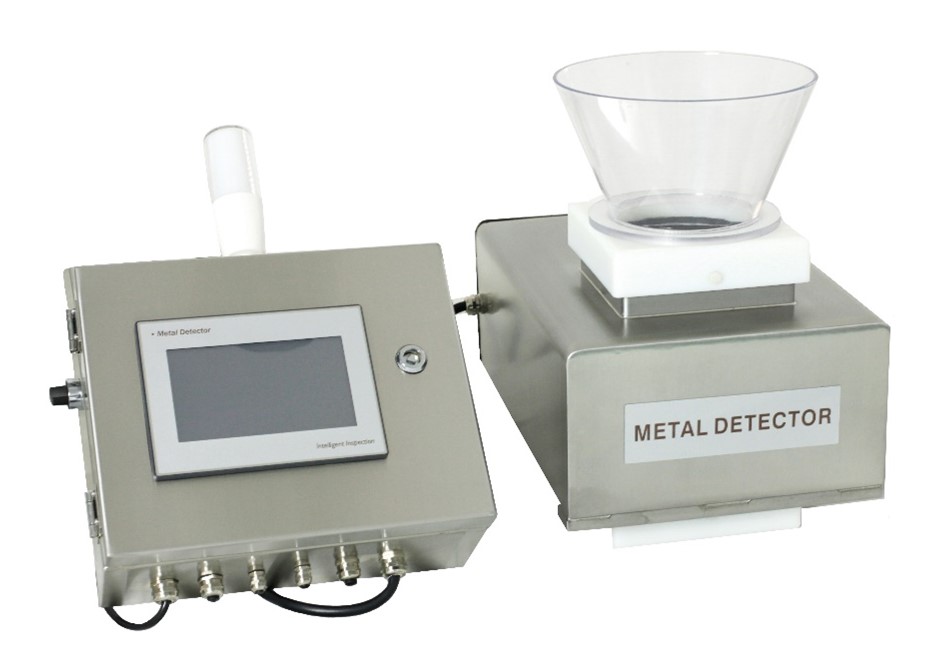

FSV series of metal detectors are specifically designed for vertical packaging systems with sensitivity, stability and intelligent detection. The biggest advantage is its zero-metal free zone. On bases of core invention patents and patented self-adaptable algorithm, plus with combination of the world’s famous component units, integrated circuits, and ARM+FPGA structural frame, SV series metal detectors contribute the leading detecting performance in the industry.



Feature

●Hard fill technology handpiece

●US ferromagnetic RAM

●US AD DDS Signal Generator, AD low noise amplifier

●French ST micro-electronic ARM processor.

●Optimized installation space due to zero metal free zone.

●Automatic parameter setting by intelligent automatic product sampling.

●Higher interference proof by multi-filtering algorithm and X-R orthogonal decomposition algorithm.

●Automatic product input phase adjustment by intelligent phase tracking technology.

●Remote distance installation of control panel by interference proof photoelectric isolating drive.

●Further improvement on detecting sensitivity and stability by DDS signal generator.

●Coordinated metal detection signal output for central control by VFFS.

●Minimum metal free zone fits the limited space between weighing device and VFFS.

●SS304 frame provides structural durability and hygiene.

Technical Data

Model-FSV		50	100	140	200	250
Pipe   Diameter (mm)		50	100	140	200	250
Sensitivity ≥(Фmm)	Fe	0.4	0.6	0.8	1.0	1.5
	Non-Fe	0.7	0.8	1.2	1.5	2.0
	SUS304	1.0	1.2	1.4	2.0	2.5
Height   of Installation (mm)		350	400	460	600	650
Rejector Device		Relay Node Output
Voltage   Power		AC110V-240V, 50/60Hz, 1ph
