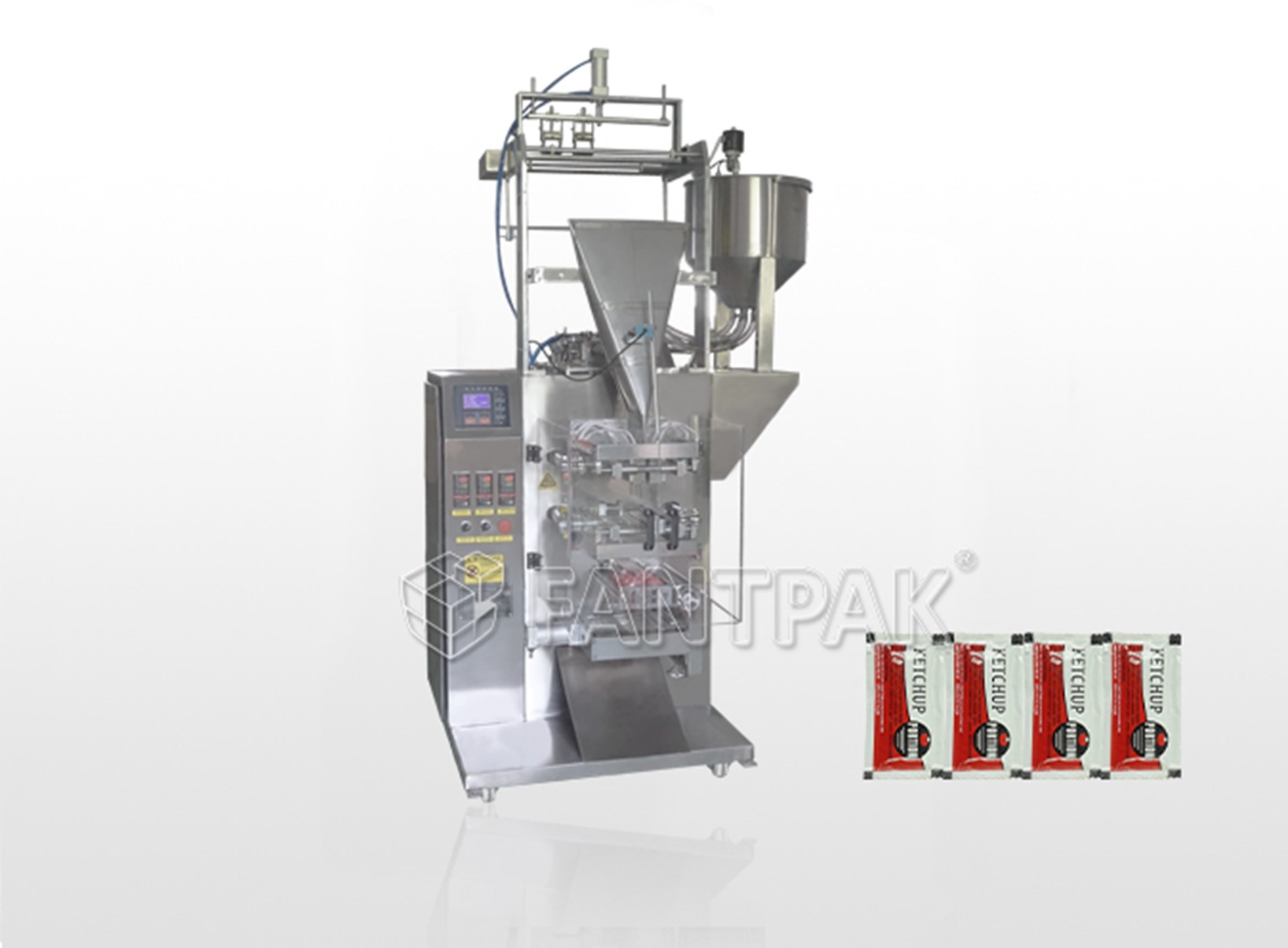

FTC-series sachet bagger, featured by cost-efficiency and reliability, is designed to achieve high performance at low cost. 4-lane sachet bagger, integrated with piston filler, is productive to form, fill and seal 4 sachets at the same time. It is widely applied to packing shampoo, cream, ketchup, mayonnaise, and others to 4-side-seal bag in lanes.



Features:

●High-speed capability up to 200bpm

●Intelligent chip controller with 5” LCD interface

●Photocell for detecting bag length

●Independent temperature adjustment

●Easy for operation and maintenance

●Limitless speed adjustor for wider speed range

●Heating and mixing storage hopper with level sensor by option

●304# stainless steel frame

●Plexiglass safety guard protection

●High performance at low cost



Technical Data

Model	FTC-4S-L4
Bag type	4-side-seal bag in 4 lanes
Speed	100-200bpm
Packaging weight	5 to 25ml
Bag length	10 to 180mm (0.4’’ to 7’’)
Bag width	30 to 60mm (1.18’’ to 2.35’’)
Electrical	220V/50HZ, 1Phase or as per customization
Power consumption	2kw
