Application

For candy, snack food, herbs, small plastic toys, cards etc. irregular shaped products.

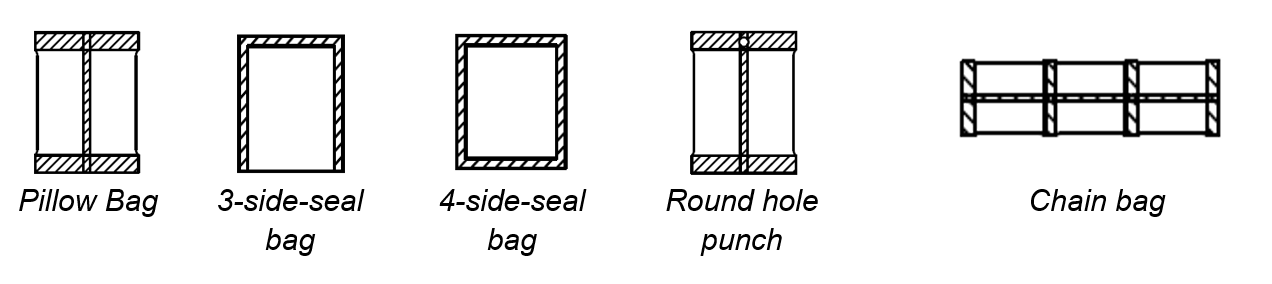

Bag Types





Features:

●Form，fill & seal system and buckets conveyor system integrated

●Intelligent chip controller with 5” LCD interface

●Photocell for film length registered and automatic adjustment in 3 bags

●Strip bags compatible from 2 - 99 bags adjustable

●Various types of laminated films namely PE/BOPP, CPP/BOPP, CPP/PET, PE/NYLON, aluminum foil based compatible

●All product contact parts in #304 stainless steel or food grade plastic

●Output counting



Technical Data

Model	FTC-B320	FTC-3S-B320	FTC-4S-B320
Bag Type	Pillow bag	3-side-seal bag	4-side-seal bag
Speed	20-60bpm
Bag Length	30 to 180mm (1.18’’ to 7.0’’)	30 to 150/ 180mm (1.18’’ to 5.9”/ 7.0”)	30-210mm (1.18’’ to 8.3’’)
Bag width	25 to 145mm (1’’ to 5.7’’)	25 to 145mm (1’’ to 5.7’’)	25 to 145mm (1’’ to 5.7’’)
Reel Film Width	≤300mm   (11.8’’)	≤280mm   (11.0”)	≤270mm   (10.6”)
Electrical	220V/50HZ, 1Phase or   per customized specifications
