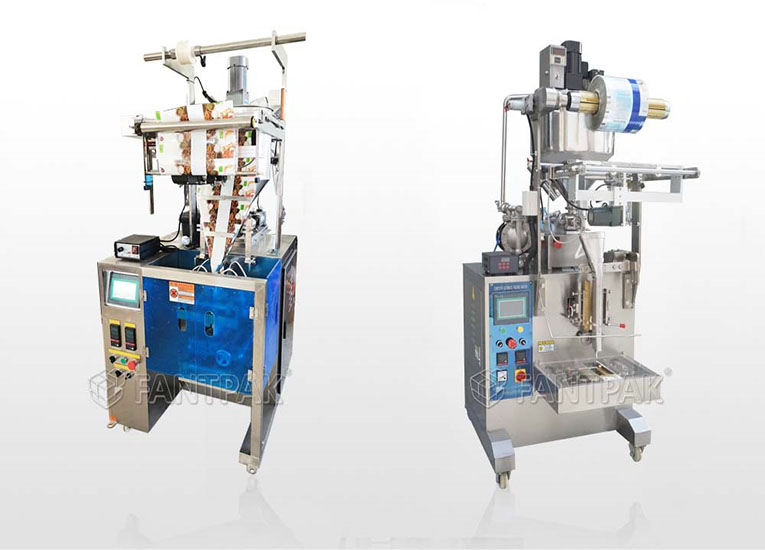

FTC-series sachet bagger, featured by cost-efficiency and reliability, is designed to achieve high performance at low cost. Integrated with pump filler as the dosing system, FTC-L series bagger is applied to packing liquid or paste, like water, juice, sauce, vinegar, honey, ketchup, peanuts butter, mayonnaise, cream, oil, shampoo, disinfectant fluid, detergent and etc.

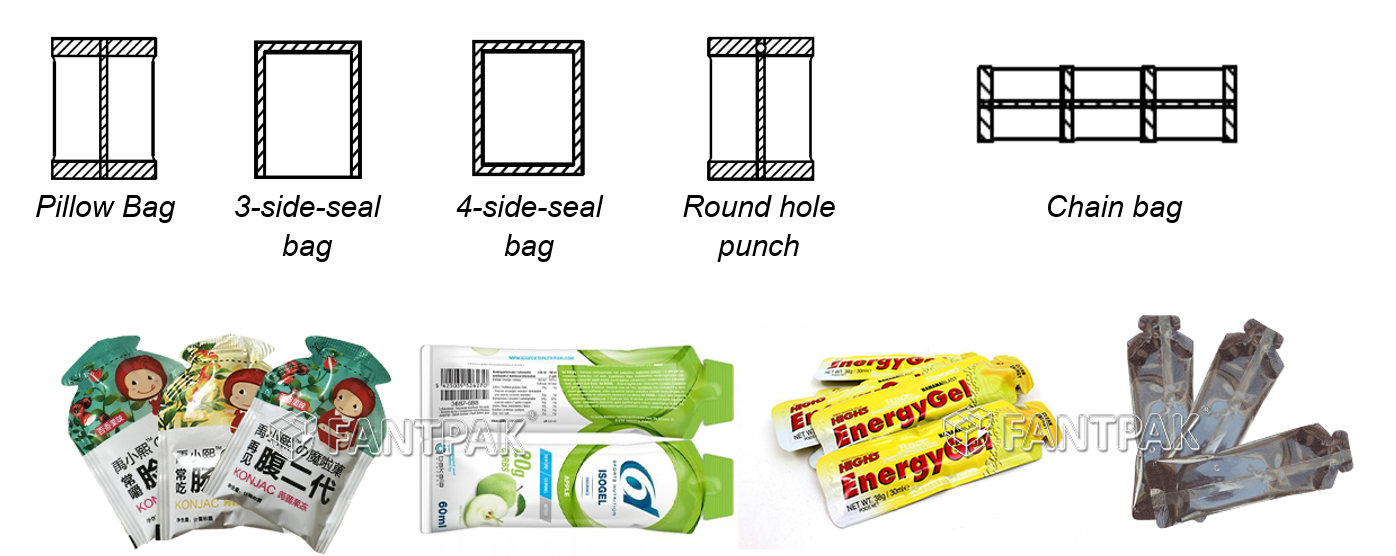

Bag Types



Features:

●Irregular-shaped sachet is available to produce

●Intelligent chip controller with 5” LCD interface

●Photocell for detecting bag length

●Independent temperature adjustment

●Easy for operation and maintenance

●Limitless speed adjustor for wider speed range

●Frequency converter for speed adjusting

●All the product contact parts in 304# stainless steel

●304# stainless steel frame

●Plexiglass safety guard protection

●High performance at low cost



Technical Data

Model	FTC-L320	FTC-L450	FTC-3S-L320	FTC-4S-L320
Bag type	Pillow bag	Pillow bag	3-side-seal bag	4-side-seal bag
Speed	24-60bpm	20-40bpm	15-40bpm; 24-60bpm	24-60bpm
Packaging weight	<40ml/  40 to 400ml	100 to 1000ml	<40ml/ 20 to 100ml/  50 to 300ml	<40ml/ 20 to 100ml; <25ml/ 20 to 75ml, 50 to 150ml
Bag length	30 to 180mm (1.18’’ to 7’’)	40 to 300mm (1.6’’ to 11.8’’)	30 to 175mm (1.18’’ to 6.9’)	30 to 150mm (1.18’’ to 5.9’)
Bag width	25 to 145mm (1.0’’ to 5.7’’)	30 to 210mm (1.2’’ to 8.2’’)	30 to 140mm (1.18’’ to 5.5’’)	25 to 135mm (1.0’’ to 5.3’’)
Electrical	220V/50HZ, 1Phase or as   per customization
