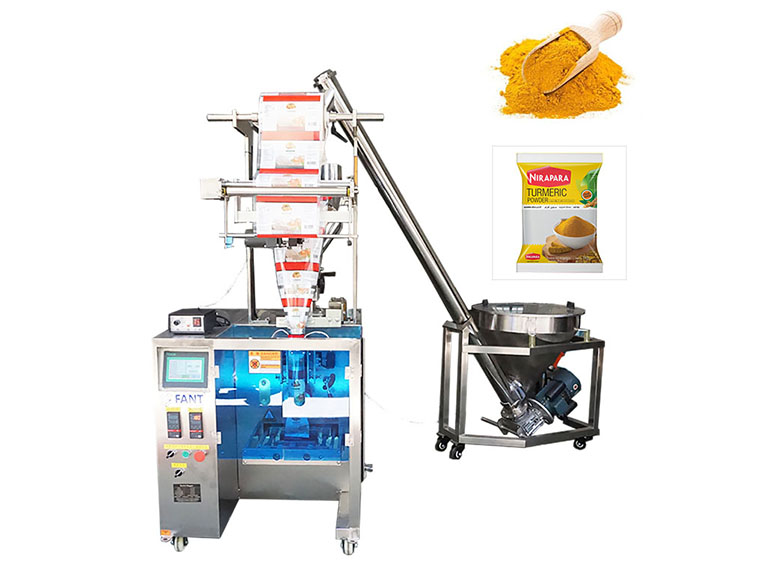

FTC-series sachet bagger, featured by cost-efficiency and reliability, is designed to achieve high performance at low cost. Integrated with auger filler as the dosing system, FTC-P series bagger is applied to pack flour, milk powder, nutrition powder, spice, and other powder with bad fluidity.

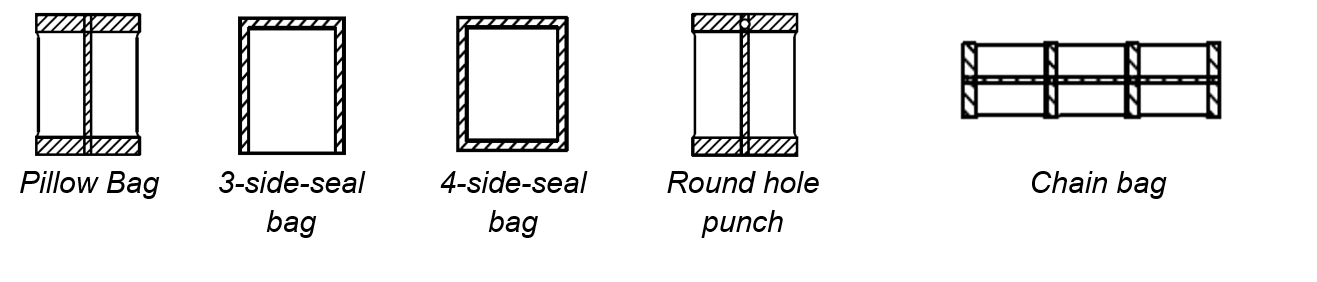

Bag Types
Features:
●High-speed capability up to 65bpm
●Max. packing weight to 1KG
●Intelligent chip controller with 5” LCD interface
●Photocell for detecting bag length
●Independent temperature adjustment
●Easy for operation and maintenance
●Limitless speed adjustor for wider speed range
●Frequency converter for speed adjusting
●All the product contact parts in 304# stainless steel
●304# stainless steel frame
●Plexiglass safety guard protection
●High performance at low cost
Technical Data
Model
FTC-P320
FTC-P450
FTC-3S-P320
FTC-4S-P320
Bag Type
Pillow bag
Pillow bag
3-side-seal bag
4-side-seal bag
Speed
20-65bpm
20-40bpm
20-65bpm
20-65bpm
Filling Range
22 to 220ml
100ml to 1000ml
0.5 to 3ml/ 3 to 10ml/
10 to 60ml
0.5 to 3ml/
3 to 10ml/
10 to 60ml
Bag Length
30 to 180mm
(1.18’’ to 7’’)
40 to 300mm
(1.6” to 11.8”)
30 to 150mm
(1.18’’ to 5.9’)
30 to 150mm
(1.18’’ to 5.9’)
Bag width
25 to 145mm
(1’’ to 5.7’’)
30 to 210mm
(1.2” to 8.2”)
25 to 145mm
(1’’ to 5.7’’)
25 to 145mm
(1’’ to 5.7’’)
Electrical
220V/50HZ, 1Phase or per customized specifications
