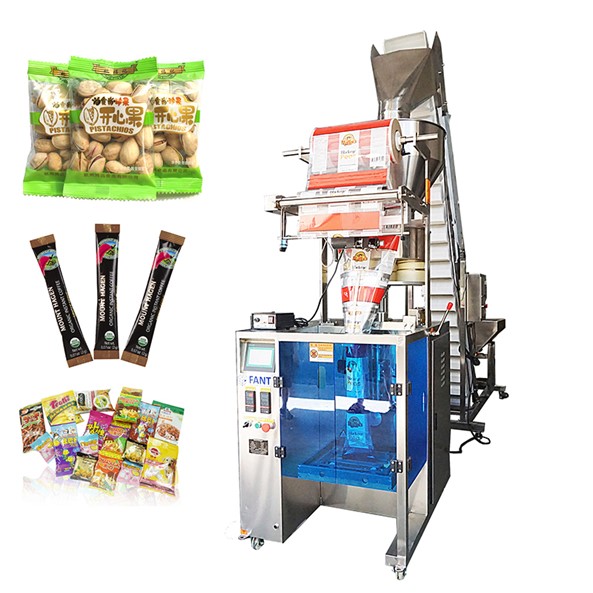

FTC series sachet bagger, featured by cost-efficiency and reliability, is designed to achieve high performance at low cost. Integrated with volumetric cup dosing system, FTC-G series bagger is applied to packing coffee, snacks, oatmeal, sugar, rice, salt, nuts, candy, crackers and other granules or powder with good flowability.

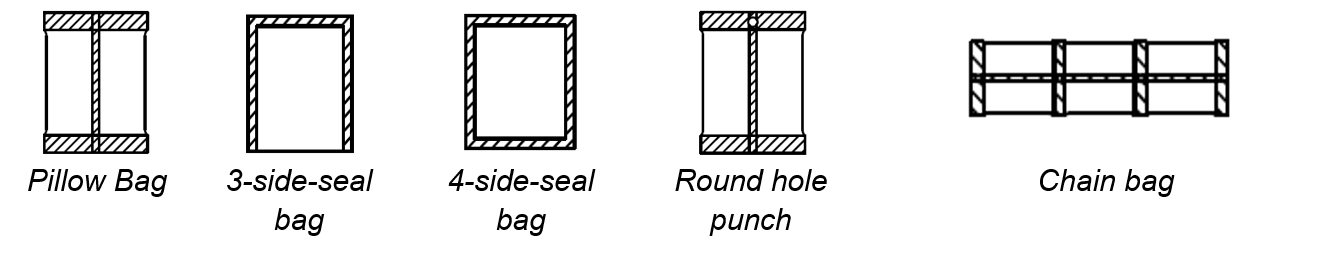

Bag Types
Features:
●High-speed capability up to 70bpm
●Max. packing weight to 1KG
●Intelligent chip controller with 5” LCD interface
●Photocell for detecting bag length
●Independent temperature adjustment
●Easy for operation and maintenance
●Limitless speed adjustor for wider speed range
●Frequency converter for speed adjusting
●All the product contact parts in 304# stainless steel
●304# stainless steel frame
●Plexiglass safety guard protection
●High performance at low cost
Technical Data
Model
FTC-G320
FTC-G450
FTC-3S-G320
FTC-4S-G320
Bag Type
Pillow bag
Pillow bag
3-side-seal bag
4-side-seal bag
Speed
20-70bpm
10-40bpm
20-70bpm
20-70bpm
Filling Range
22 to 220ml
100ml to 1000ml
22 to 220ml; 22 to 90ml;
5 to 15ml; 2 to 20ml
22 to 100ml
Bag Length
30 to 180mm
(1.18’’ to 7.0’’)
40 to 300mm
(1.6” to 11.8”)
30 to 150/ 180mm
(1.18’’ to 5.9”/ 7.0”)
30-150mm
(1.18’’ to 5.9’’)
Bag width
25 to 145mm
(1’’ to 5.7’’)
30 to 210mm
(1.2” to 8.2”)
25 to 145mm
(1’’ to 5.7’’)
25 to 145mm
(1’’ to 5.7’’)
Electrical
220V/50HZ, 1Phase or per customized specifications
