It’s used for all types of liquid products of high or low viscosity packaging, such as juice, water, milk, soup, glucose syrup, soy sauce, butter, hot chili sauce, jams, purees, mayonnaise, custard cream, salad dressing, ice cream, tomato ketchup, meat pastes, pastry fillings, emulsifiers, resins, paint, wax, ice gel, lubrication oil, grease, paraffin, glue, detergent, hand soap, sanitizer, ointments, antifreeze, additives and so on.

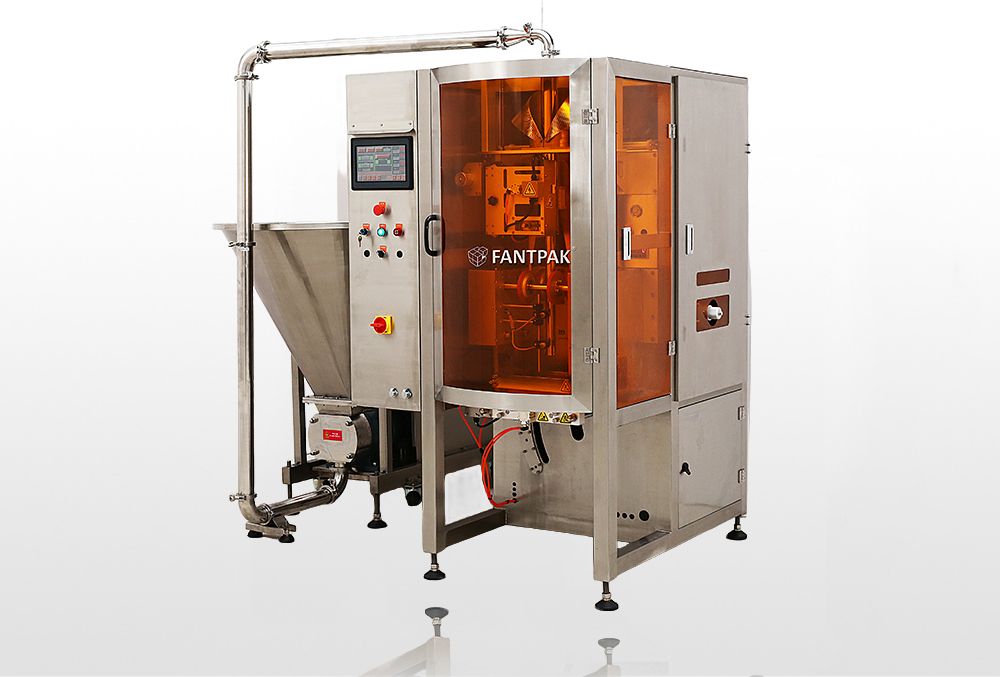

It’s specially designed for air free pouch packaging application, unique design that both functional for piping bag and pillow bag packaging by easy-changeover.
Features:
●Mitsubishi PLC & 10’’ Touch Screen Controller
●Full 304# stainless steel structure
●All products contact parts to be food grade 304# stainless steel and 316#L SS is optional
●Mitsubishi Servo driven allows for a quick and precise bag movement
●Panasonic convertor for speed adjusting
●Fault alarm shut down and message display
●Unique designed horizontal jaw is flexible to pack both piping bag & pillow bag in quick form changeover
●Squeeze roller could avoid the sealing area be polluted but making nice pattern
●Without residual air and with hermetic seals, the packaging maintains the flavor and freshness of the food
●Horizontal and Vertical sealing jaw coating with Teflon to prevent corrosion and pollution from long-term use of high viscous materials
●Level sensor for volume measuring to achieve continuous fully bag feeding
●High temperature aseptic packaging can be realized, up to hot 100 ° C temperature which improves the shelf life of the products.
●Film auto tracking, Length registered by photoelectric-eye & encoder
●Rugged, durable equipment to withstand severe environments.
Technical Data
Model | FSV-H530P |
Bag Style | Vacuum Piping bag and Pillow Pack |
Speed | 5 to 50bpm |
Bag Length | Up to 600mm (23.5’’) |
Bag Width | 100 to 250mm (4’’ to 9.8’’) |
Packing Volume | Up to 6Liter |
Reel Film Width | ≤530mm (20.8’’) |
Voltage | AC380V/50Hz, 3phase or Per customer specification |
Power Consumption | 2KW |
Compressed Air Requirement | 0.6 MPa,0.3 M3/min |

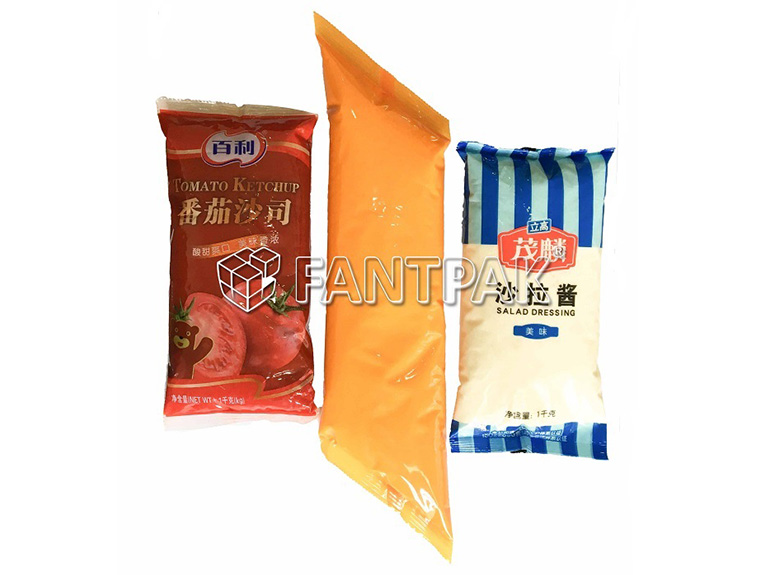

Vacuum Bag Samples:
