It is adopting modular vent cleat which is suitable for elevating wet products, such as vegetables, fruits, IQF frozen products, the water will drip on the bottom collecting plate. Certainly, it’s also used for other dry snacks, candies, cookies etc products’ delivery. Its height is available to be customized design as the clients’ requests.



Features

● Thermo-drive belt
● Positive drive
● Replaces Plastic modular cleat belt
● Conveys wet and dry foods
● Stainless steel structure for hygienic applications
● Customized designs
● Variable speed drive for best performance
● Available to rinse the conveyor plate out directly
● IP65 Jacked cover

Technical Data

Power	0.75kw
Discharge height	2-5mt  (custom-made basing on request)
Capacity	42m/min
Voltage	380V/50Hz, 3ph or 220V/50Hz, 1ph

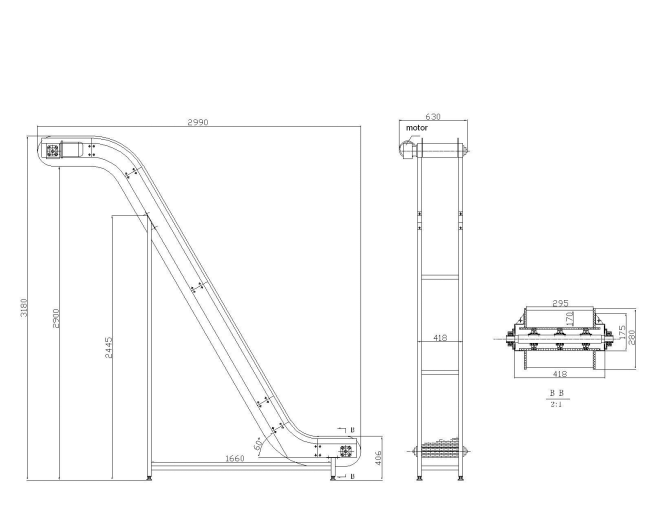

Layout Drawing
