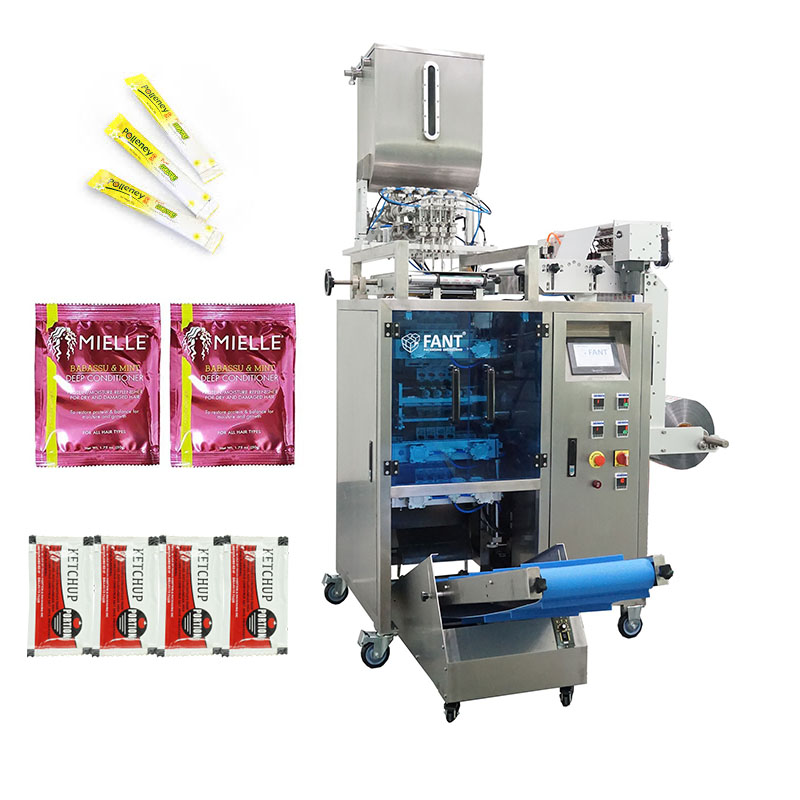

Liquid & Pastes Multi- Lane Sachet Bagger







FT-series sachet bagger, featured by cost-efficiency and reliability, is designed to achieve high performance at low cost. It is integrated with liquid/pastes filler dosing system, is productive to form, fill and seal multi-sachet at the same time, which max. reach to be 20 lane, film width to be 1200mm. It is widely applied to packing honey, mayonnaise, ketchup, jam, cream, juice, syrup, sauce, shampoo, jelly, gel, oil and etc.

It’s available to produce back seal, 3 side seal and 4 side seal by different model machines.



Features

●Intelligent PLC and touch screen, easy to operate

●Independent temperature adjustment

●Film-pulling controlled by servo motor with more precision for bag length

●Equipped with color ribbon printer

●304# stainless steel frame and contact parts

●Photoelectric tracking system for precise bag length and position of film

●Automatic alarm for film exhaustion

●It’s able to make back seal, 3 side seal and 4 side seal sachet by different models

Technical Data

Model

FT-L480

FT-L720

FT-L960

FT-L1200

Bag type

Back seal, 3 side seal   or 4 side seal (By option)

Lanes

2-8 lanes

4-12 lanes

4-16 lanes

5-20 lanes

Speed(bpm)

25-50 per lane

Bag length

45-120mm (1.8’’ to 4.7’’)

Bag width

30-60mm

30-90mm

30-120mm

30-120mm

Electrical

110V/220V/380V, 50/60HZ   1phase or 3 phase

Air consumption

0.8m³/min; 0.8Mpa
