It's best suited for small packages range from "tube nut" style bags and up to 8'' width bag. Make pillow, gusseted and block bottom bag styles.

Features

● Smarter and Faster

● High speed capabilities up to 75bpm

● Quick, no-tool forming tube change

● Servo-driven film transport

● Motorized film unwind with film tension adjustment

● Compact small size design, Small footprint

● High performance at low costs

Technical Specifications

Bag style	pillow bag; Gusseted or block bottom bag (Option)
Bag length	Up to 280mm ( 11’’)
Bag width	40 to 200mm (1.6’’ to 7.9’’)
Film width	≤420mm (16.5’’)
Voltage	AC220V/50Hz, 1phase or Per customer specification
Power Consumption	3KW

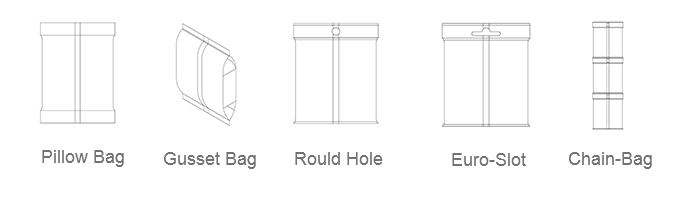

Bag Styles
