The main characteristic of the machine is the flexibility and versatility to produce a wide range of type and dimensions of packs, being able to focus for food or non-food application.

Features

● User friendly PLC & Touch screen interface system

● Superior fiber-optic film registration system

● Quick-changeover feature

● Film-Pulling remote diagnostics and data acquisition

● Pneumatic film roll brake

● Adjustable dwell time for better looking seals and increased packaging speeds

● Compact, robust and long-life construction

Technical Specifications

Bag style	pillow bag; Gusseted or block bottom bag (Option)
Bag length	Up to 340mm ( 13.4'')
Bag width	80 to 260mm (3.1’’ to 10.3'')
Film width	≤540mm (21.2'')
Voltage	AC220V/50Hz, 1phase or Per customer specification
Power Consumption	3KW
Compressed Air Requirement	0.6 MPa, 0.36 M3／min  ( 87 Psi, 12.7cfm)

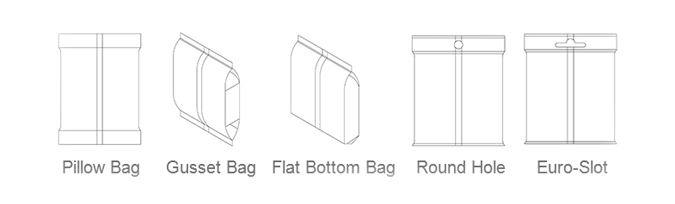

Bag Styles
