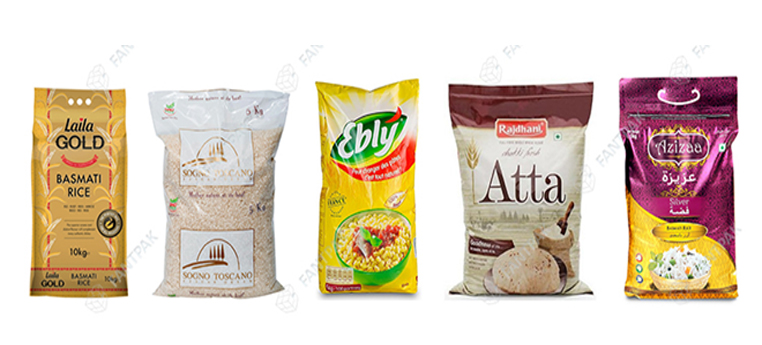

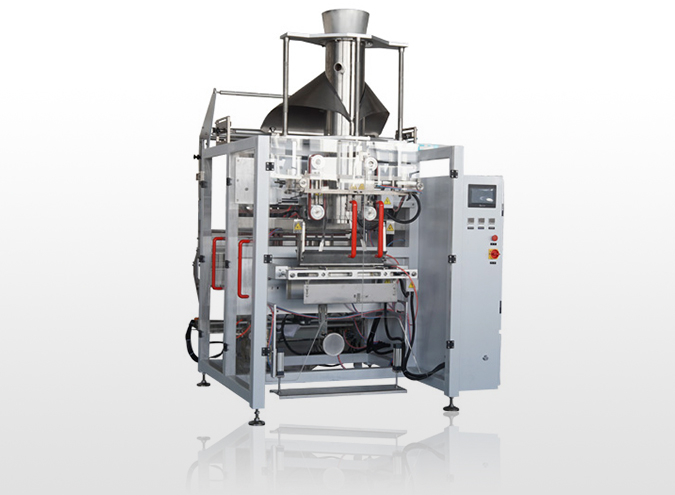

It is a colossal giant bulk bagger offers automation solutions for large bags, which size is up to 18.9'' long by 21.2'' width in a single stroke.

Features

● Single stroke bag length up to 480mm (3.9 to 18.9’’); Bag width up to 535mm (4.7 to 21.1’’)

● Vacuum pump assists film transport

● Film auto tracking, Length registered by photo sensor and Encoder

● Film roll holders with pneumatic chocks

● With supporting plate to buffer the heavy bags’ falling

● Fully interlocked guarding system

● Rugged, durable equipment to withstand severe environment



Technical Specifications

Model	FT-1200
Bag type	Pillow type bag; Gusseted bag   (Option)
Operation Mode	Intermittent
Output (bpm)	5 to 25
Bag Length (single stroke)	100 to 480mm(3.9’’ to 18.9’’)
Bag Width	250 to 550 (10’’ to 21.5’’)
Reel Film Width	580 to 1100mm (22.8’’ to 43.3”)
Reel Outer Dia.	600mm (23.6’’)
Reel Inner Dia.	75mm (2.9’’)
Electrical	AC220V/50Hz,   1phaseor Per customer specification
Power	4.5KW
Air Pressure & Consumption	0.6 MPa, 0.45 Mᶟ／min   ( 87 Psi, 12.7cfm)
Footprint (W x D x H)	1635 x   2155 x 2640mm(5’4’’x 7’1’’x8’8’’)
Machine Weight	1200kg

All above specifications are subject to change and may differ according to product, please confirm when placing your order.
